3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S

Brand Name : HuaXin

Model Number : HX0345S001

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1~1000

Price : $15.1~$15.8

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : transflective display

name : sunlight readable display

size : 3.45 inch

resolution : 480*640

Brightness : 120c/d

Interface : MIPI

Driving IC : ST7701S

Contact Now

3.45 inch Transflective TFT Display
Product Attributes
Attribute Value
Display Technology Transflective display
Name Sunlight readable display
Size 3.45 inch
Resolution 480*640
Brightness 120c/d
Interface MIPI
Driving IC ST7701S
Technical Parameters
Part No: HX0345S001
Display Mode 3.45 inch transflective TFT display
Outline Size (mm) 55.44(H)*78.89(V)
AA Size (mm) 51.84X69.12
Display Dots 480*640
View Angle ALL
Brightness 120C/D
Interface MIPI
Driving IC ST7701S
Working Temp -20~70
Storage Temp -30~80

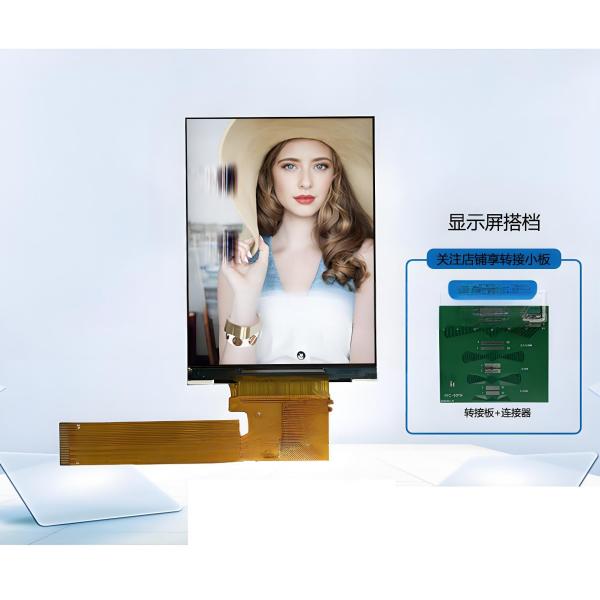

Product Pictures
3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S 3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S 3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S 3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S 3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S

TFT structure:

3.45 Inch Transflective TFT Display 480*640 MIPI Interface Driving IC ST7701S
Huaxin Advantage
Factory base located at inland city which has cost effective
Most advanced new equipment which can keep quality stable
Most processes using fully automatic equipment which has efficiency and stable quality
Professional engineers and production leaders who works in LCD field for more than 20 years
Self design for customized product

Our Certificates:

1. ISO14001

2. ISO9001/IATF16949

3. SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

- Hubei.Enshi

- Date of foundation: 2009

- High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

- LCM includes: COB, TBA, COG, TP, LED backlight and other series

- Register capital: twenty million

- Current staff: 500+

- RD accounts for 10%

- QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
  • Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
  • Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.
  • Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
  • Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.
  • Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.
  • Wide Applications: Suitable for various industrial and commercial uses.
Limitations of TFT Displays
  • Limited Viewing Angles: Compared to some other technologies.
  • Limited Contrast Ratio: May not achieve the deepest blacks.
  • Backlighting and Power Consumption: Requires continuous backlighting.
  • Response Time and Motion Blur: Can show motion blur in fast-moving images.
  • Limited Flexibility: Rigid structure compared to newer flexible displays.
  • Limited Color Gamut: May not reproduce the full range of colors.
