4 Inch FHD TFT Display High resolution Tft Display 1280*720 Dots 30 pins LVDS interface 1100c/d

Name: 4 Inch FHD TFT Display High resolution Tft Display 1280720 Dots 30 pins LVDS interface 1100cd
Brand: HuaXin
Price: 22.1 USD

Buy cheap 4 Inch FHD TFT Display High resolution Tft Display 1280*720 Dots 30 pins LVDS interface 1100c/d product

Brand Name : HuaXin

Model Number : ESHX040HDI27P30

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $22.1

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT lcd

Name : high resolution tft

Display size : 4 inch TFT display

Resolution : 1280*720

interface : 30pin LVDS

Brightness : 1100cd/m2

Driving IC : /

Contact Now

4 Inch FHD TFT Display High resolution Tft Display 1280*720 Dots 30 pins LVDS interface 1100c/d

Technical Parameters

Part No:	ESHX040HDI27P30	unit
Size 尺寸	4	inches
Resolution 分辨率	1280*720	pixels
Active Area 显示区域	87.94*49.46	mm
Outline dimension 外观尺寸	93.0858.762.71	mm
Pixel pitch 点距	0.0229*0.0687	mm
Color Depth 颜色	16.7M
Display Mode 显示模式	Normally black Transmissive
Surface treatment 表面处理	TBD
Interface 接口	LVDS 30PIN
View Angle 可视角度	80/80/80/80
Brightness 亮度	1100	Nits
Contrast ratio 对比度	1000
Response time 响应时间	30	ms
Operating temperature 工作温度	-20 ... +70	°C
Storage temperature 储存温度	-30 ... +80	°C

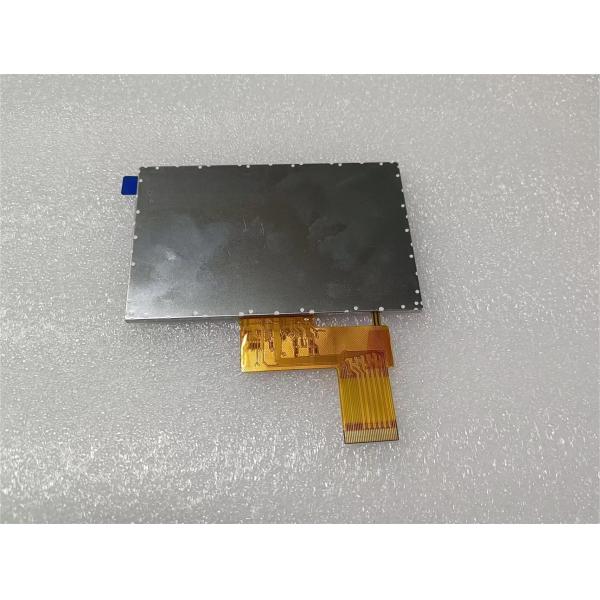

Product Images

4 Inch FHD TFT Display High resolution Tft Display 1280*720 Dots 30 pins LVDS interface 1100c/d

Technical drawing

4 Inch FHD TFT Display High resolution Tft Display 1280*720 Dots 30 pins LVDS interface 1100c/d

TFT Technology Overview

Manufacturer Advantages

Cost-effective inland factory location
Advanced equipment ensuring stable quality
Automated processes for maximum efficiency
20+ years of LCD industry experience
Custom design capabilities available

Certifications

ISO14001 Environmental Management
ISO9001/IATF16949 Quality Management
SGS certified LCD modules

TFT Display Characteristics

High resolution with excellent color accuracy
Fast response times for smooth visuals
Wide viewing angles for flexible positioning
Energy efficient LED backlight system
Available in versatile size options

Common Applications

Automotive: navigation systems, dash displays
Medical devices and diagnostic equipment
Industrial control systems and HMI
Consumer electronics and home appliances
Digital signage and information displays

Technical Considerations

Viewing angle limitations in some models
Contrast ratio constraints compared to newer technologies
Backlight power requirements
Potential motion blur in fast-moving content
Fixed panel structure with limited customization

Company Profile

Huaxin Technology (Enshi) Co., LTD

Founded 2009 in Hubei, China

Specializes in LCD, LCM, TFT, backlight, and OLED technologies
500+ employees with dedicated R&D and QC teams
Registered capital: 20 million RMB
